EF0611

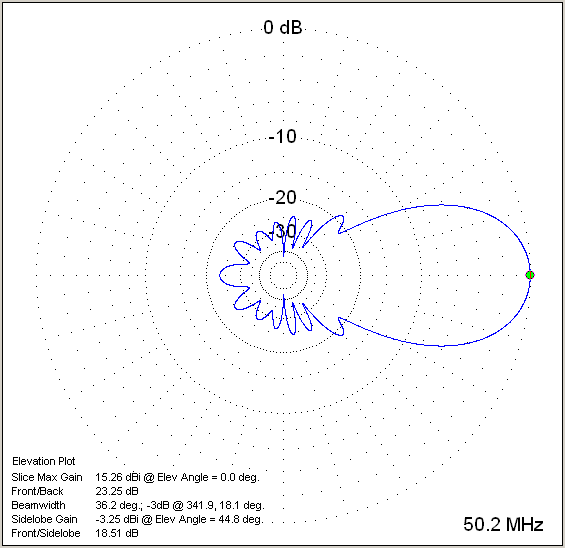

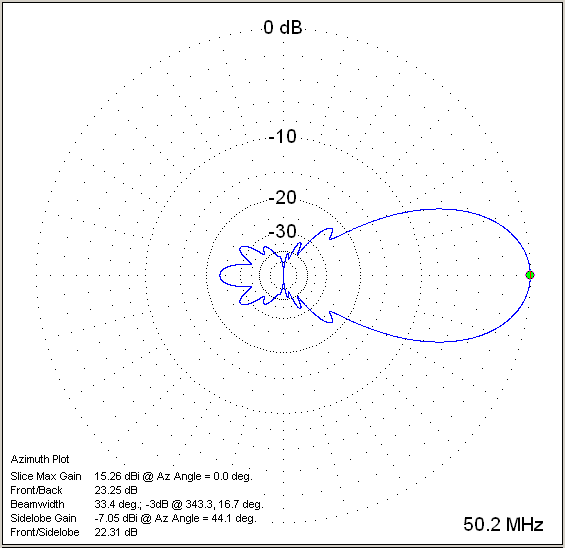

A REAL MONSTER FOR THOSE THAT WANT BIG ANTENNA FOR MORE EME

FREE SPACE DIMENSIONS
  REF DE D1 D2 D3 D4 D5 D6 D7 D8 D9
POSITION 0 960 1342 2524 4372 6525 8858 11245 13828 16222 18683
3/8" 2944 2916 2804 2757 2701 2649 2623 2584 2544 2500 2486
10 mm 2943 2916 2802 2755 2698 2646 2620 2581 2542 2497 2479
12 mm 2940 2912 2794 2746 2688 2634 2608 2568 2528 2482 2464
1/2" 2940 2910 2786 2736 2675 2619 2592 2551 2510 2463 2444
15 mm 2934 2904 2780 2730 2670 2614 2586 2544 2506 2456 2439
5/8" 2933 2903 2779 2729 2669 2613 2585 2544 2503 2455 2437


STACKING DISTANCE:      HORIZONTAL = 9.5 - 10.0m         VERTICAL = 9.0 - 9.5m

2.5 - 2.8 dB STACK GAIN FOR DOUBLING THE SYSTEM
