EF803 |
|

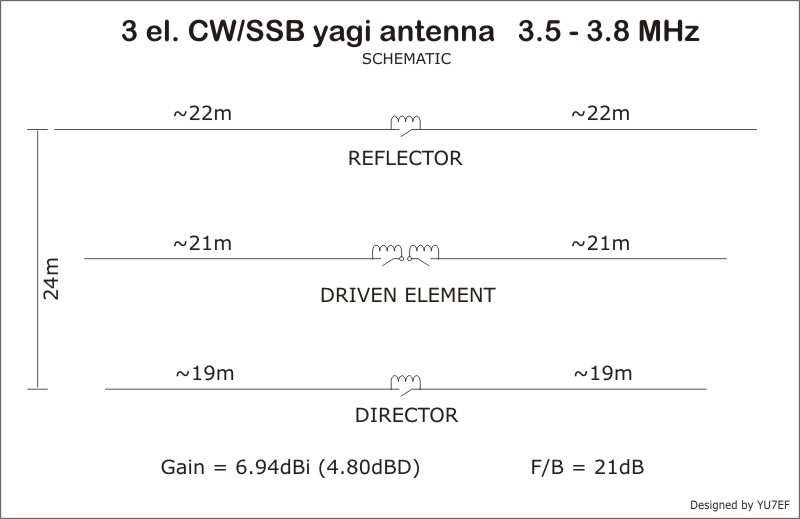

This is a 3 el. full size 80m yagi covering entire band from 3.5 - 3.8 MHz |
|
|

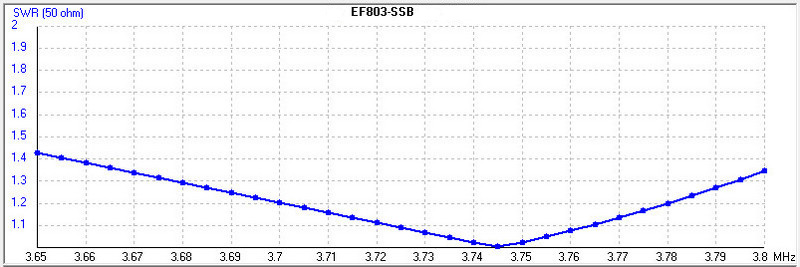

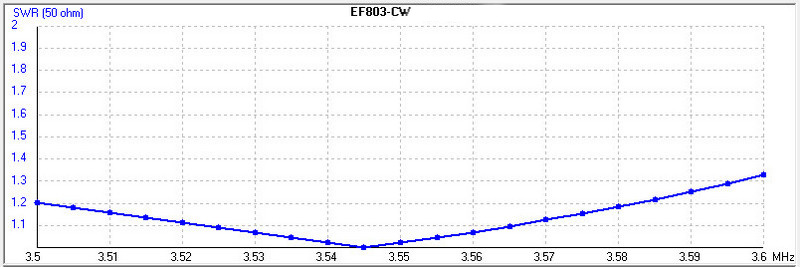

| Swithching from SSB to CW is done with set of inductances with remotely controlled relays |
|
|
|
|

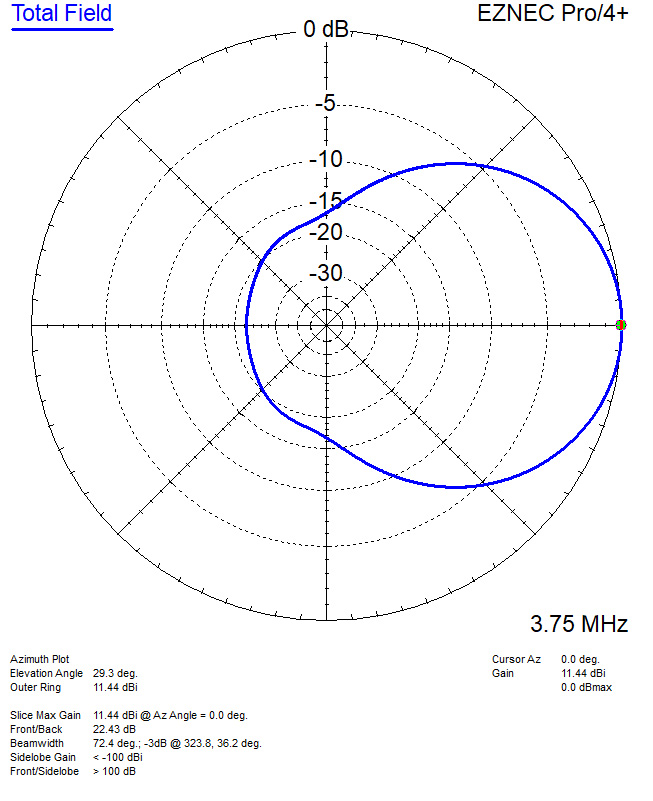

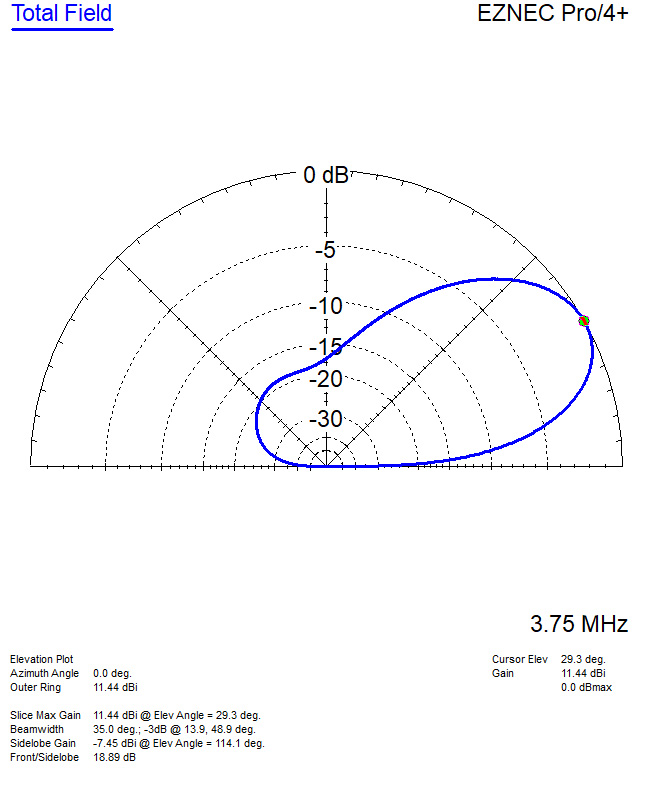

| Radiation pattern when antenna is installed at 35m above the ground |
|
|
|
|

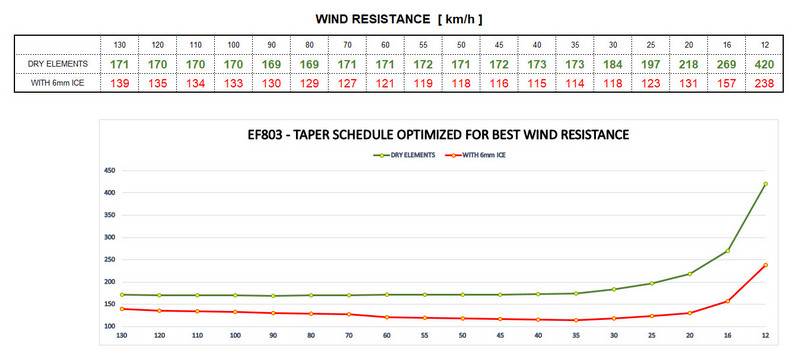

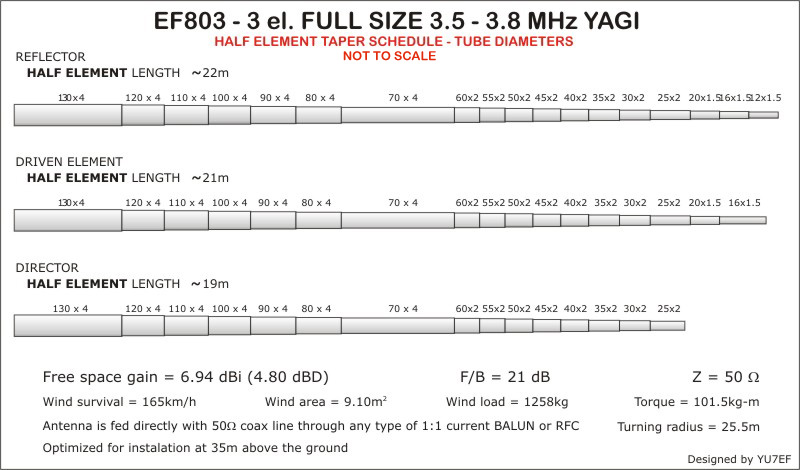

| Taper schedule of elements is carefully optimized for exceptional wind resistance of >160km/h (100mph) and mechanical strength without critical spots |
|
|
|
|
|
For those who want to build this antenna, please
send me mail for detail taper schedule and tubing sizes required to build this antenna, either in metric or imperial tubing sizes |
| Antenna built by LZ5R Milara contest team - see video on Youtube |
|
|
